Concrete Retaining Walls in Dallas, TX

Control slopes and protect your yard with concrete retaining walls in Dallas, TX. We design and build structural and decorative walls that hold back soil and create useable space. Our retaining wall concrete solutions are reinforced, properly drained, and finished to complement your landscape.

Advanced Concrete Dallas provides professional concrete retaining wall throughout Dallas, TX, Texas and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call (469) 754-9677 or request your free quote.

Concrete Retaining Walls for North Texas Soil and Slopes

Concrete retaining walls in Dallas have a tough job. They hold back heavy clay soil that swells when it is wet and shrinks when it is dry, all while dealing with sudden downpours and long dry spells. At Advanced Concrete Dallas, we design and build each concrete retaining wall around these exact local conditions, not around a one-size-fits-all template.

Most of our projects are on sloped backyards in subdivisions built from the 1980s to today, older Dallas neighborhoods with mature trees and shifting fences, and commercial properties that need stable parking lot edges or loading areas. The right retaining wall solution for a Lake Highlands backyard with big oak roots is not the same as a new build in Frisco with freshly graded soil, so our first step is always a site-specific evaluation.

We look at slope, soil type, drainage patterns, existing structures, and how you actually use the space. If you want a flat play area for kids, we might design a tiered retaining wall system. If the priority is protecting a driveway from erosion, we focus on heavier structural reinforcement and controlled water discharge. The goal is not just to stop soil movement today, but to keep your wall stable through years of Dallas weather cycles.

Our Step-by-Step Process for Building a Reliable Concrete Retaining Wall

When Advanced Concrete Dallas installs a concrete retaining wall, we follow a clear, documented process so you know what to expect at every stage.

1. Site visit and measurement: We walk the property with you, identify problem areas like washouts, fence line heaving, or foundation exposure, and take elevation and length measurements. We also look for nearby trees, sprinkler lines, and buried utilities.

2. Design and engineering: For taller or load-bearing walls (for example, supporting a driveway or parking area), we involve a structural engineer who understands North Texas soil behavior. We determine wall thickness, footing size, rebar spacing, and any step-downs needed to follow the slope. For lower garden or landscape walls, we still calculate expected soil pressure and include safety margins instead of guessing.

3. Layout and excavation: We mark the wall line and dig down for the footing. Depth depends on wall height, soil conditions, and code requirements, but in this region it often ranges from 18 inches to 36 inches or more. We over-excavate slightly so we can place and compact a gravel base, which reduces settlement.

4. Footing preparation: We install form boards, add compacted crushed rock if needed, and set horizontal and vertical rebar per the design. This reinforced footing gives the wall a strong, continuous base to resist tipping and sliding in Dallas clay.

5. Wall construction: Depending on the design, we either pour a monolithic concrete wall, build a block wall with grouted cores and rebar, or create a decorative faced wall with a structural concrete core. We use vibration or rodding to eliminate air pockets in the concrete and tie all rebar securely so the wall acts as a single unit.

6. Drainage and backfill: We install perforated drain pipe at the base of the wall on the soil side, wrapped in filter fabric and surrounded by clean gravel. We include weep holes or hidden outlet points as needed so water pressure never builds up behind the wall. Backfill is placed in layers and compacted to reduce future settling.

7. Clean up and walkthrough: After forms are removed and the site is cleaned, we walk the wall with you, explain how the drainage works, and point out expansion joints or control joints so you know what normal hairline cracking looks like versus something that would need attention.

Design Choices: Structural Types, Finishes, and Layout Options

Concrete retaining walls are not all gray slabs. At Advanced Concrete Dallas, we give you both structural and visual options so the wall works hard and looks at home on your property.

Structural types we install most often in the Dallas area include:

• Reinforced cast-in-place concrete walls, which are ideal when you need maximum strength in a tight space, such as holding back soil near a foundation or driveway.

• Concrete block (CMU) retaining walls with grouted and reinforced cores, often used where height or length is significant but access is limited for large formwork.

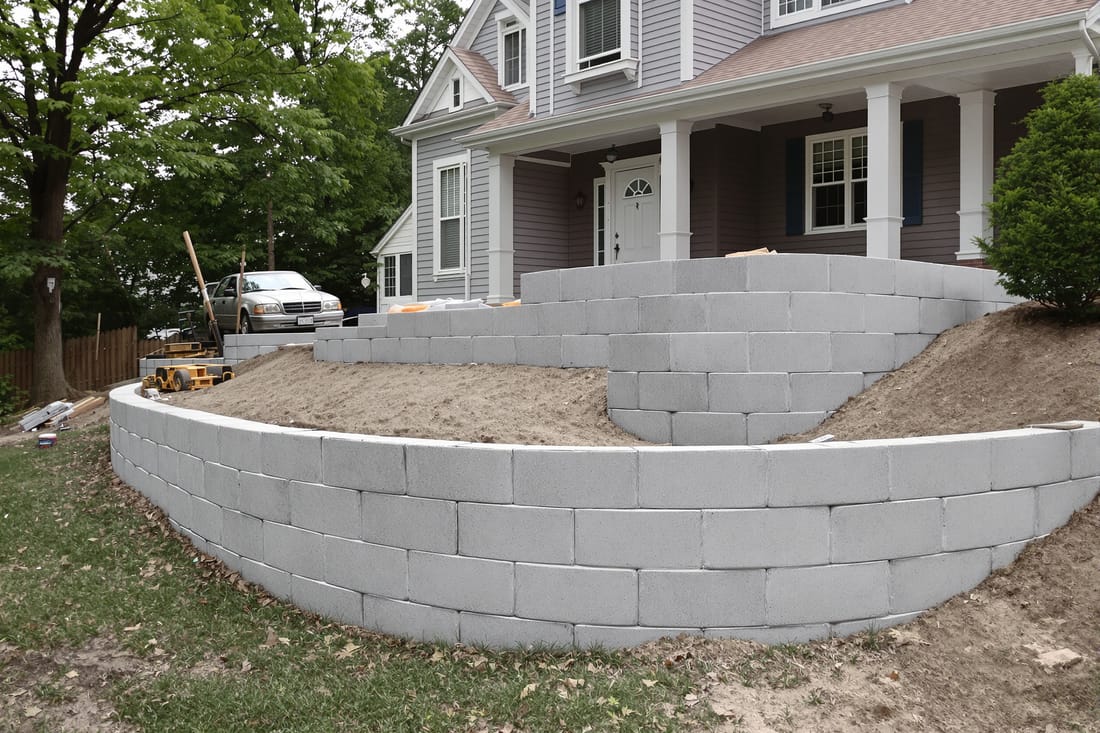

• Segmental retaining walls that use specialized interlocking blocks. These are common in landscape applications and can be engineered for taller heights with geogrid reinforcement.

For finishes, many homeowners worry that a concrete retaining wall will look industrial. We can change that. Options include broom finish for a clean, simple look, textured form liners that mimic stone, integral color added to the concrete mix, or a separate stone or brick veneer that matches your house or existing hardscape. In older Dallas neighborhoods with visible limestone or brick patterns, this can help the new wall blend in.

Layout decisions affect both cost and performance. Longer, low stepped walls can sometimes replace a very tall single wall, which spreads out soil loads and can look more natural in a residential yard. Curved walls can follow existing landscaping beds and are often better at handling slight changes in grade. During design, we also discuss railings or guard features if the wall creates a drop-off that could be a safety issue for children or pets.

What Drives the Cost of a Concrete Retaining Wall in Dallas

Property owners understandably want to know why quotes for a concrete retaining wall can vary so much. At Advanced Concrete Dallas, we break down pricing so you can see what you are paying for and where you have choices.

Key cost drivers include:

• Wall height and length: Soil pressure increases quickly with height, so a 6 foot wall often needs far more reinforcement and a larger footing than a 3 foot wall. Longer walls require more materials and labor, but benefit from some economies of scale.

• Site access: A backyard reachable only through a narrow side gate may require more hand work and smaller equipment. If we can bring in a skid steer or mini excavator, excavation and backfill are faster and less expensive.

• Soil conditions: Highly expansive clay, soft fill, or old construction debris in the ground can require deeper footings, more gravel, or removal and replacement of unsuitable soil. In older Dallas neighborhoods it is common to find buried bricks, roots, or concrete rubble that must be handled before we pour.

• Drainage systems: Proper drainage is not optional for long lasting retaining walls in North Texas. French drains, gravel backfill, and weep holes add cost up front but drastically reduce the chance of movement or failure after a heavy storm.

• Engineering and permits: Taller structural walls or those near property lines or structures may need engineered drawings and city permits. We help coordinate this process and can include these items in a turnkey quote.

We are transparent about materials and methods, so if you get a much lower bid from another contractor, you can ask specific questions such as, "What size rebar are you using," "How deep is the footing," or "What drainage are you including" and compare apples to apples.

Common Retaining Wall Problems in Dallas and How We Prevent Them

Many of the concrete retaining walls we are asked to replace around Dallas fail for the same reasons, most of which are avoidable with proper design and construction.

The most frequent issue is horizontal cracking and bulging caused by water pressure behind the wall. When heavy rain soaks the clay soil, it expands and pushes hard on the structure. If there is no drain pipe or weep holes, or if the backfill is just native clay instead of free draining material, that pressure builds until something gives. This is why we always include drainage design in our concrete retaining wall projects and use clean rock backfill directly behind the wall.

Another common problem is footing movement or rotation. If the footing is too shallow, built on loose fill, or not wide enough, the wall can tilt forward over time. In parts of Dallas with older, disturbed soils from previous construction, we sometimes recommend over-excavating and compacting a base layer to create a more stable platform before we pour any concrete.

Tree root intrusion is also common around older homes, especially where large oaks or pecans are near a wall. Instead of cutting roots aggressively, which can harm trees, we look at alignment adjustments, root barriers, or alternative wall types in sensitive areas. Our goal is to protect your concrete retaining wall without compromising mature landscaping.

For homeowners who already have a leaning or cracked wall, we can evaluate whether reinforcement or partial rebuilding is possible, or if full replacement is the safer route. We always explain what caused the problem so the new design does not repeat the same mistake.

Working With Advanced Concrete Dallas: What to Expect

Choosing a contractor for a concrete retaining wall is as important as choosing the design. At Advanced Concrete Dallas, we focus on communication and predictability so you understand each stage and timeline.

During the estimate, we listen to your goals first, whether that is creating flat space, protecting a structure, or improving curb appeal. We talk through multiple options when possible, outlining the tradeoffs in cost, appearance, and longevity. If an engineered wall is required, we let you know how that affects schedule and pricing before you commit.

Once we begin work, we set clear start and finish expectations, weather permitting. Dallas storms can disrupt concrete schedules, and we would rather delay a pour by a day than place concrete in poor conditions. We keep you updated if the plan must adjust.

Our crews are experienced with tight Dallas lots, shared fence lines, and working around neighbors. We protect existing landscaping as much as possible and restore disturbed areas before we leave. At the end of the project, you receive a walkthrough and care tips, such as watching for unusual movement after the first big storm and keeping drain outlets clear of mulch and debris.

If you are considering a concrete retaining wall for your Dallas property, Advanced Concrete Dallas is ready to visit your site, discuss ideas, and provide a detailed, written proposal that explains exactly what you are getting and why it will last in our local conditions.
